Direct-Driven Screw Air Compressor
Product Profiles
The direct driven screw air compressor transmits electric power to the airend through a flexible coupling, it consumes almost no energy in the transmit process, so that direct driven is the most efficient transmission mode.
Excellent powerful compressor airend;
This air end is equipped with latest rotors with bigger diameter and low rotate speed, SKF overloading bearing and three stages special oil seals guarantees the air efficiency and the useful lifetime, and reduce the radial vibration and air noise.
Air cooling model
Energy-saving centrifugal cooling system
Special cooling for powerful compressor (the consumption of electricity is only 7.5kw for 250kw-315kw models.
Water cooling model
High efficiency water-cooled cooler.
The element of the cooler consists of the high efficiency finned copper tube and is combined with precise shell. This combination effectively improves the heat exchange rate between compressed air and water, reduces the consumption of the cooling water.
High efficiency motor
Output efficiency is up to 96%
Degree of protection:Â IP55Â or IP54
Service factor:Â SF=1.20
Special equipped SKF overloading bearing
Low noise and longtime use life
Removable Doors
With doors that can be easily removed, making servicing your compressor is quick and easy. Â
|
MODEL |
POWER |
PRESSURE |
AIR FLOW |
OUTLET CONNECTION |
NOISE LEVEL dB(A) |
WEIGHT (KG) |
DIMENSION (L*W*H mm) |
|||
|
KW |
HP |
BAR |
PSI |
M3/MIN |
CFM |
|||||
|

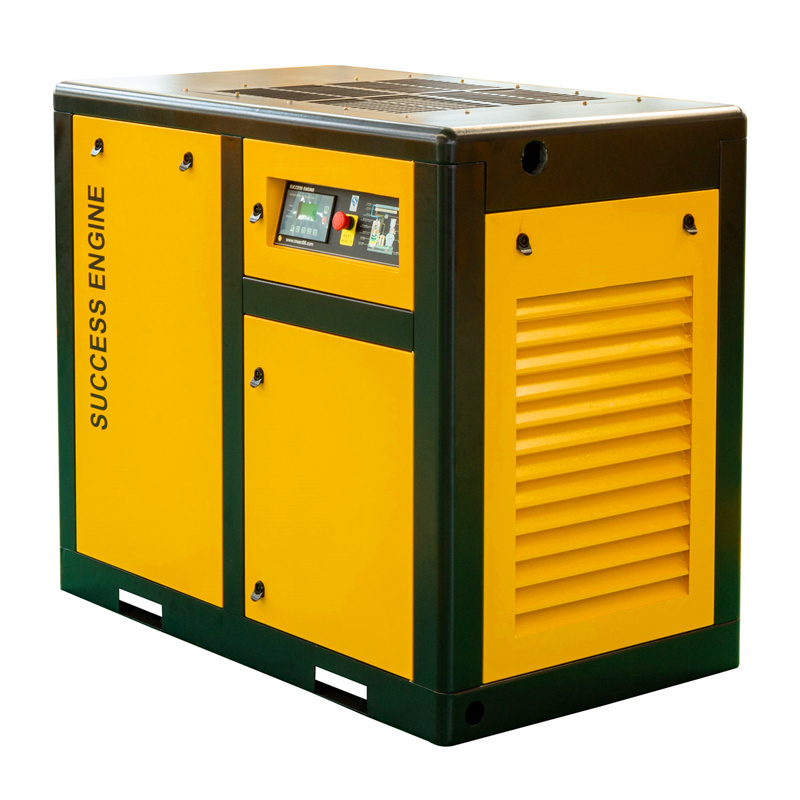

SE22A-8/D |
22 |
30 |
8 |
116 |
3.6 |
127.1 |
Rp 1 1/4 |
68 |
630 |
1300x860x1340 |
|
SE30A-8/D |
30 |
40 |
8 |
116 |
5.0 |
176.5 |
Rp 1 1/4 |
70 |
690 |
1450x860x1340 |
|
SE37A-8/D |
37 |
50 |
8 |
116 |
6.6 |
233.0 |
Rp 1 1/2 |
70 |
870 |
1580x950x1470 |
|
SE45A-8/D |
45 |
60 |
8 |
116 |
7.8 |
275.3 |
Rp 1 1/2 |
72 |
960 |
1580x950x1470 |
|

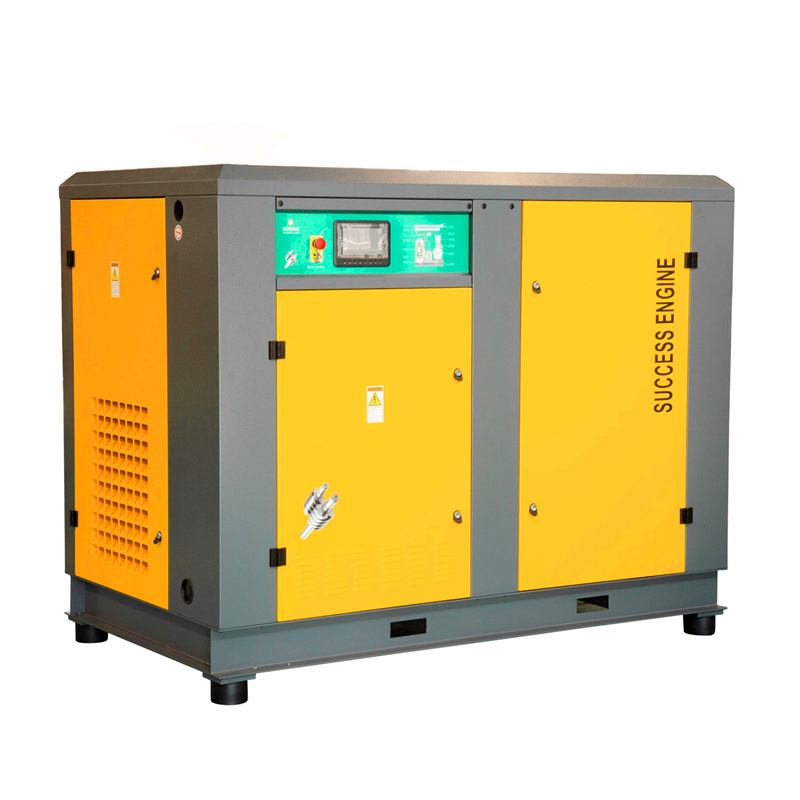

SE55A-8/D SE55A-13/D |
55 |
75 |
8 13 |
116 188.5 |
10.0 7.8 |
353 275.3 |
Rp 2 |
74 |
1460 |
2000x1100x1585 |
|
SE75A-8/D SE75A-10/D |
75 |
100 |
8 10 |
116 145 |
13.0 10.9 |
458.9 384.8 |
Rp 2 |
75 |
1580 |
2000x1200x1585 |
|

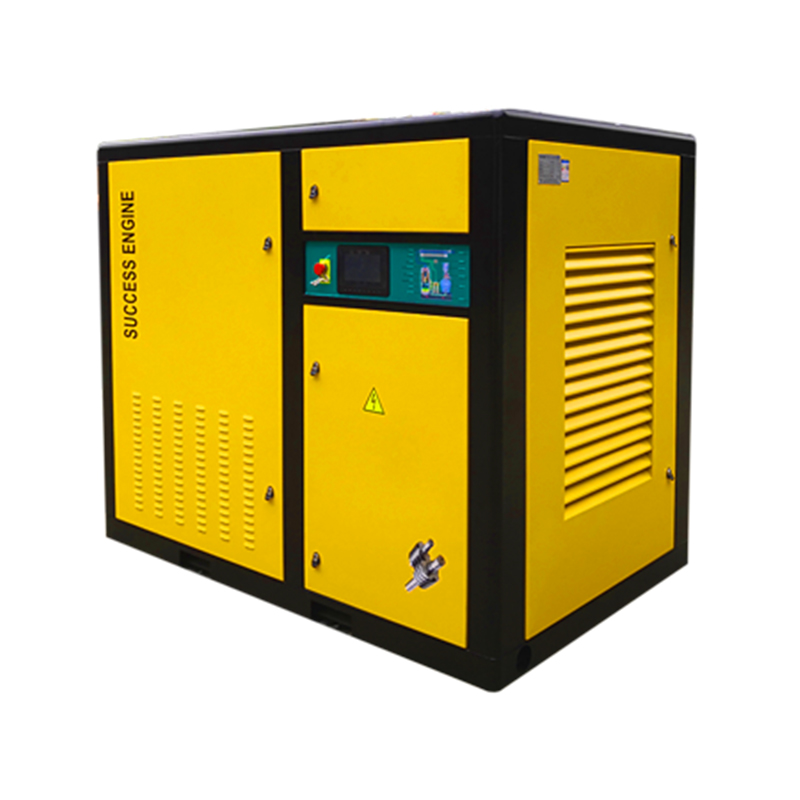

SE90A-8/D SE90A-10/D SE90A-13/D |
90 |
120 |
8 10 13 |
116 145 188.5 |
15.0 13.0 10.0 |
529.5 459 353 |
Rp 2 |
75 |
1950 |
2000x1200x1585 |
|
SE110A(W)-7/D SE110A(W)-8/D SE110A(W)-10/D SE110A(W)-13/D |
110 |
150 |
7 8 10 13 |
101.5 116 145 188.5 |
20.0 19.8 17.0 13.6 |
706 698.9 600.1 480.1 |
DN65 |
75 |
2300 |
2166x1700x1918 |
|
SE132A(W)-07/D SE132A(W)-8/D SE132A(W)-10/D SE132A(W)-13/D |
132 |
180 |
7 8 10 13 |
101.5 116 145 188.5 |
23.6 23.4 20.0 16.0 |
833.1 826.0 706 564.8 |
DN65 |
75 |
2500 |
2166x1700x1918 |
|
SE160A(W)-7/D SE160A(W)-8/D SE160A(W)-10/D SE160A(W)-13/D |
160 |
220 |
7 8 10 13 |
101.5 116 145 188.5 |
27.0 26.6 24.5 20.8 |
953.1 939.0 864.9 734.2 |
DN65 |
76 |
2750 |
2466x1900x1918 |
|
SE180A(W)-7/D SE180A(W)-8/D SE180A(W)-10/D SE180A(W)-13/D |
180 |
240 |
7 8 10 13 |
101.5 116 145 188.5 |
30.0 29.2 26.8 23.0 |
1059.0 1030.8 946.0 811.9 |
DN65 |
76 |
3000 |
2466x1900x1918 |
|
SE200A(W)-8/D SE200A(W)-10/D SE200A(W)-13/D |
200 |
270 |
8 10 13 |
116 145 188.5 |
33.6 29.5 25.0 |
1186.1 1041.4 882.5 |
DN80 |
76 |
4500 |
2966x2000x1918 |
|
SE220A(W)-8/D SE220A(W)-10/D SE220A(W)-13/D |
220 |
300 |
8 10 13 |
116 145 188.5 |
37.5 33.5 28.0 |
1323.8 1182.6 988.4 |
DN100 |
76 |
4800 |
3260x2050x2030 |
|
SE250A(W)-8/D SE280A(W)-10/D SE315A(W)-13/D |
250 280 315 |
340 380 430 |
8 10 13 |
116 145 188.5 |
43.0 42.0 40.0 |
1517.9 1482.6 1412.0 |
DN100 |
80 |
6200 |
3260x2050x2030 |
