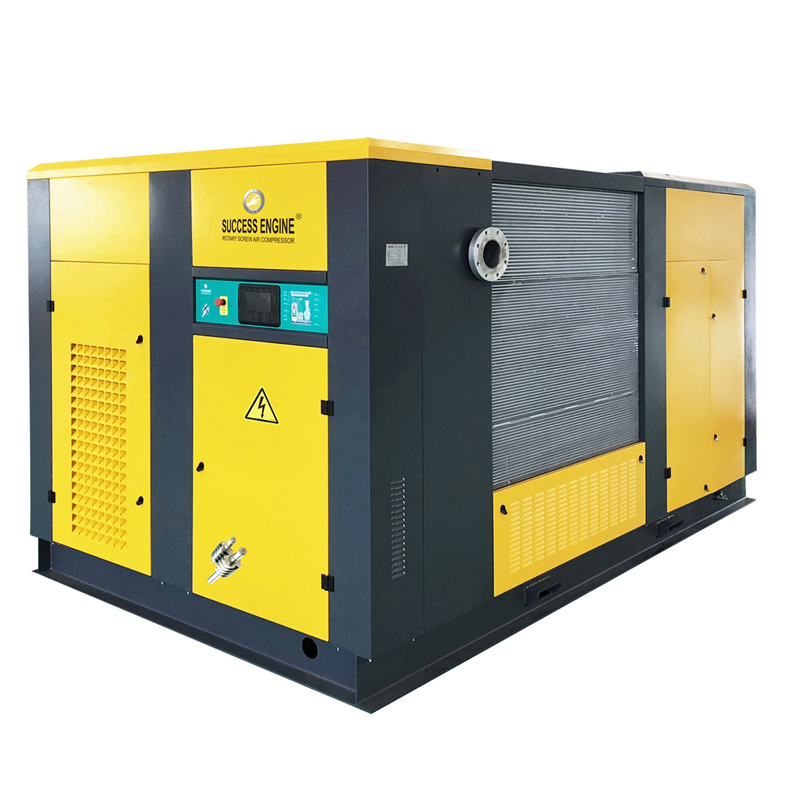

Two-Stage Oil-injected Screw Air Compressor
Description
SUCCESS ENGINE energy-saving screw air compressor has two core patents - large-diameter rotor profile design and high-efficiency centrifugal cooling system, which greatly improves the compression and volumetric efficiency. The product has been tested by third-party, the volume flow and input power meet the requirements of the energy-saving evaluation value, and it is rated as an energy-saving product.
The energy-saving screw air compressor adopts high-efficiency special motor with high-quality bearings. According to the customer's power supply conditions, it can choose to match various motors of different voltage & frequency, permanent magnet type, explosion-proof, dust-proof, etc.
With ingenious design, high-standard configuration, and excellent value for money, SUCCESS ENGINE is proud of its quality. Please continue to browse the detailed introduction, we believe that you will have your own choice!
Reliable, Ultra-Efficient Performance
Use the newest UV rotor of profile line with large diameter and low speed. The two pairs of rotors are independent of the two compression units, the primary compression rotor and the secondary compression rotor are combined in same compressor housing. Respectively, through the gear drive, the two inter-stage rotors are in the best line speed state of operation, and the compression efficiency is extremely high. This air compressor’s has smaller host compression ratio, less leakage, and the volume efficiency is higher than the single-stage compression of 15%, the energy-saving effect is remarkable.
Precise Control
Personalized intelligent control system, Intuitive Intellects controller gives you complete, fingertip access to your compressor, including easily adjustable operating parameters and time-saving on-board diagnostics.
Less-Leakage Design
Selection of high durability, strong bearing capacity of SKF heavy-duty bearing to ensure that the core components with excellent reliability and durability. Using O-ring fittings significantly reduces the potential leakage problems associated with conventional threaded fittings..
Flexible Design Options
Air-cooled or water-cooled, Standard and VSD type, Voltage & Frequency customized, Low Pressure (3～5 Bar)Soft starting option, mixed flow system temperature control valve.
MODEL Power (kW) Pressure（bar） Air Flow (m3/min) Outlet Connection Cooling water/air capacity (air -kw;warter-m3/h) Weight (Kg) Dimension L×W×H mm 22 7 10 12.5 4.20 3.80 3.20 Rp 1 1/4 * 680 1470x860x1340 37 7 10 12.5 7.10 6.60 5.80 Rp 1 1/2 * 920 1610x1000x1470 55 7 10 12.5 11.60 11.20 9.10 Rp 2 * 1620 2100x1200x1680 75 7 10 12.5 15.80 14.20 11.60 Rp 2 * 1980 2100x1200x1680 90 7 10 12.5 20.50 17.60 14.20 DN 65 * 2600 2500x1800x1800 110 7 8 10 12.5 24.50 23.50 20.00 17.20 DN 65 Air-3.0kw Water-10m3/h 3300 2500x1800x1800 132 7 8 10 12.5 27.60 26.60 23.50 19.60 DN 65 Air-3.0kw Water-12m3/h 3550 2500x1800x1800 160 7 8 10 12.5 33.50 32.50 29.00 23.20 DN 80 Air-3.5kw Water-15m3/h 4000 3000x1800x1800 185 7 8 10 12.5 39.50 38.00 32.50 27.80 DN 80 Air-3.5kw Water-15m3/h 4200 3000x1800x1800 220 7 8 10 12.5 46.60 45.00 41.50 38.20 DN 100 Air-5.5kw Water-20m3/h 6500 3200x2200x2300 250 7 8 10 12.5 52.00 50.50 45.50 40.20 DN 125 Air-7.5kw Water-25m3/h 7200 3200x2200x2300 280 7 8 10 12.5 60.00 58.50 51.00 43.50 DN 125 Air-7.5kw Water-30m3/h 9000 3200x2200x2300 315 7 8 10 12.5 65.00 63.00 59.00 53.00 DN 125 Air-7.5kw Water-30m3/h 9200 3200x2200x2300 355 380 400 7 8 10 73.20 72.90 72.60 DN 200 Air-11kw Water-35m3/h 9500 5060x2350x2400 400 430 450 7 8 10 82.50 82.20 81.60 DN 200 Air-15kw Water-45m3/h 10000 5060x2350x2400 500 540 570 7 8 10 102.00 101.60 101.20 DN 200 Water-55m3/h 10500 5060x2350x2400 (VSD/VFD type is available, please consult with sales)

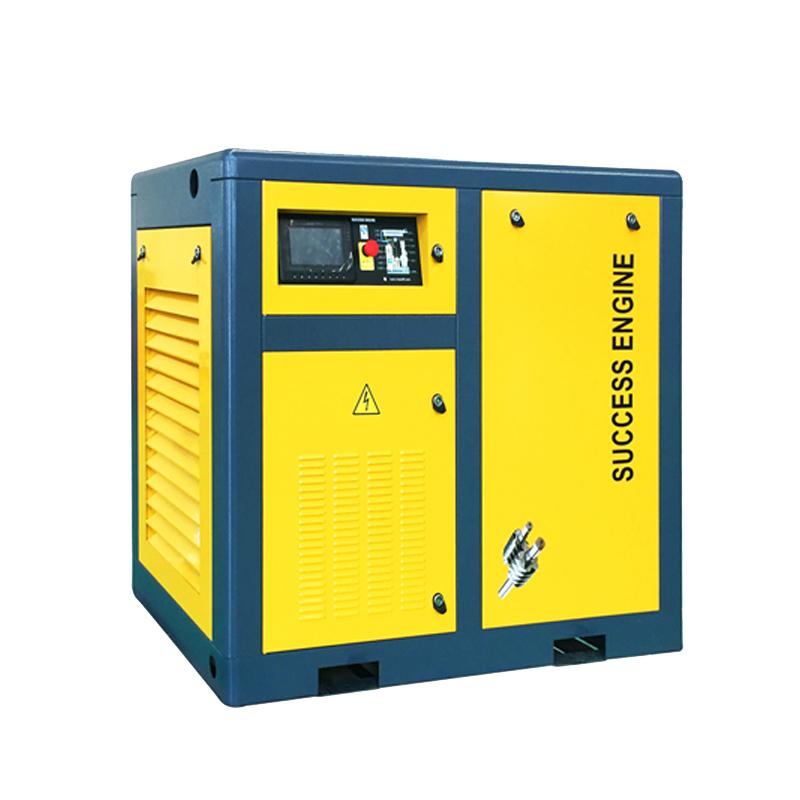

SE22AE-7
SE22AE-10
SE22AE-12.5
SE37E-7
SE37AE-10
SE37AE-12.5
SE55AE-7
SE55AE-10
SE55AE-12.5
SE75AE-7
SE75AE-10
SE75AE-12.5
SE90AE-7
SE90AE-10
SE90AE-12.5
SE110AE-7
SE110AE-8
SE110AE-10
SE110AE-12.5
SE132AE-7
SE132AE-8
SE132AE-10
SE132AE-12.5
SE160AE-7
SE160AE-8
SE160AE-10
SE160AE-12.5
SE185AE-7
SE185AE-8
SE185AE-10
SE185AE-12.5
SE220A(W)E-7
SE220A(W)E-8
SE220A(W)E-10
SE220A(W)E-12.5
SE250A(W)E-7
SE250A(W)E-8
SE250A(W)E-10
SE250A(W)E-12.5
SE280A(W)E-7
SE280A(W)E-8
SE280A(W)E-10
SE280A(W)E-12.5
SE315A(W)E-7
SE315A(W)E-8
SE315A(W)E-10
SE315A(W)E-12.5
SE355A(W)E-7
SE380A(W)E-8
SE400A(W)E-10
SE400A(W)E-7
SE430A(W)E-8
SE450A(W)E-10
SE500A(W)E-7
SE540A(W)E-8
SE570A(W)E-10
