V-belt Driven Screw Air Compressor
SE V-belt driven compressor models

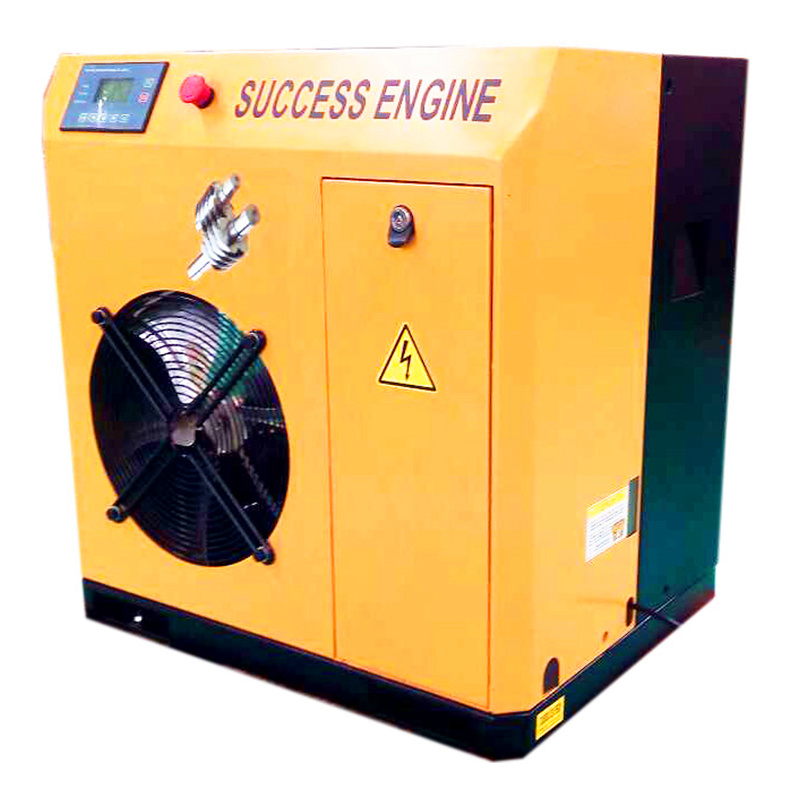

(SEC4-11A)

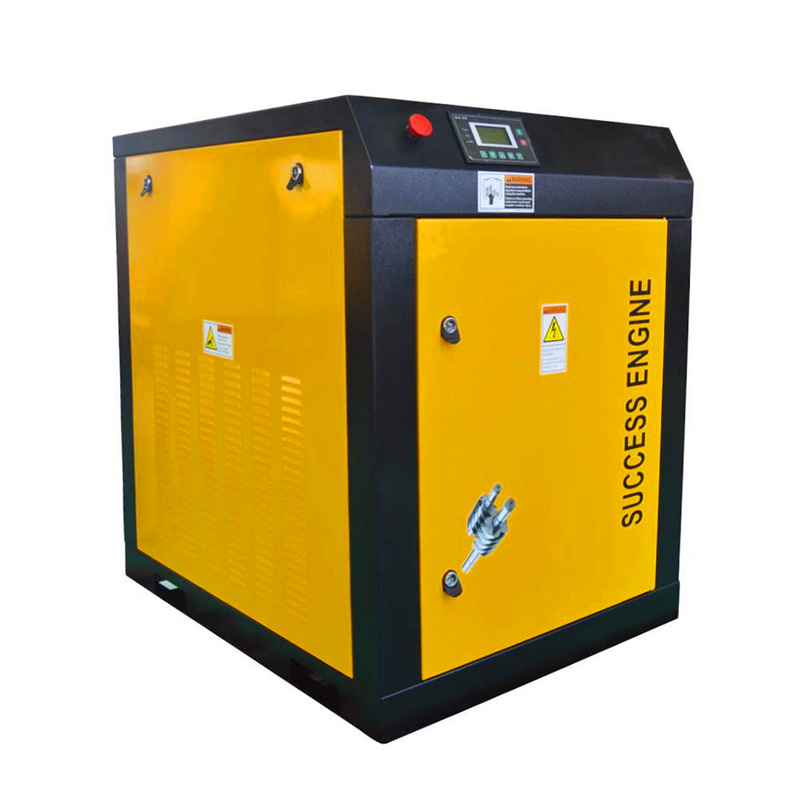

(SE15-18A)
Advantages
(1).Long life-time
The compressor airend is operated with a large rotor at a low speed, so it has a long life-time. Adopts asymmetric screws, optimize the design of female and male rotors’ end face, as well as optimize the diameter and length of the screw rotors, so that it has reduces hydrodynamic losses and noise reduction, the airend's volume utilization is more efficiency.
(2).The overall design of the air compressor is compact, reasonable and stable.
(3).Use belt to drive, noise is low.
(4).Easy to operate and maintenance.
(5).Low empty-load energy consumption
|
MODEL |
POWER |
PRESSURE |
AIR FLOW |
NOISE LEVEL dB(A) |
OUTLET CONNECTION |
WEIGHT (KG) |
DIMENSION L×W×H (mm) |
|||
|
KW |
HP |
BAR |
PSI |
M3/MIN |
CFM |
|||||
|
SEC4A-7 SEC4A-8 SEC4A-10 SEC4A-13 |
4 |
5.5 |
7 8 10 13 |
101.5 116 145 188.5 |
0.5 0.5 0.4 0.25 |
17.6 17.6 14.1 8.83 |
60 |
RP 3/4 |
150 |
800x620x810 |
|
SEC5A-7 SEC5A-8 SEC5A-10 SEC5A-13 |
5.5 |
7.5 |
7 8 10 13 |
101.5 116 145 188.5 |
0.8 0.8 0.63 0.5 |
28.2 28.2 22.2 17.6 |
60 |
RP 3/4 |
170 |
800x620x810 |
|
SEC7A-7 SEC7A-8 SEC7A-10 SEC7A-13 |
7.5 |
10 |
7 8 10 13 |
101.5 116 145 188.5 |
1.15 1.15 1.0 0.79 |
40.6 40.6 35.3 27.8 |
62 |
RP 3/4 |
190 |
800x620x810 |
|
SEC11A-7 SEC11A-8 SEC11A-10 SEC11A-13 |
11 |
15 |
7 8 10 13 |
101.5 116 145 188.5 |
1.80 1.80 1.50 1.20 |
635. 63.5 52.9 42.3 |
66 |
RP 3/4 |
230 |
800x620x810 |
|
SE15A-7 SE15A-8 SE15A-10 SE15A-13 |
15 |
20 |
7 8 10 13 |
101.5 116 145 188.5 |
2.3 2.3 2.05 1.65 |
81.2 81.2 72.4 58.3 |
66 |
RP 3/4 |
420 |
775×1050×1050 |
|
SE18A-7 SE18A-8 SE18A-10 SE18A-13 |
18 |
25 |
7 8 10 13 |
101.5 116 145 188.5 |
3.0 3.0 2.6 2.2 |
106 106 91.8 77.7 |
66 |
RP 3/4 |
480 |
775×1050×1050 |
Releted Products

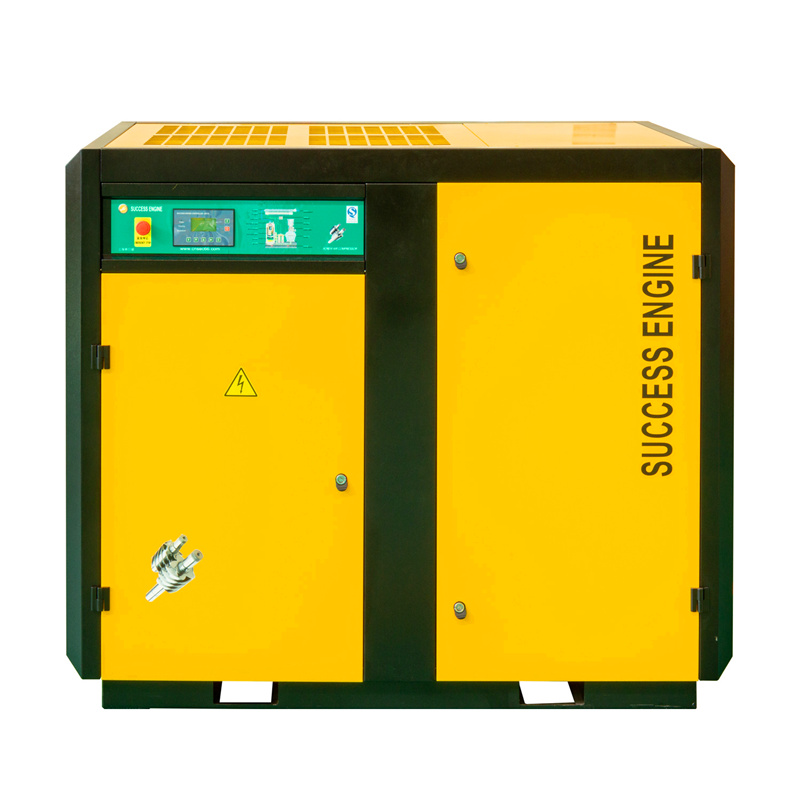

High-efficiency Intelligent Variable-frequency Screw Air Compressor
